Home » Products » Liquid Filler » YG4/2/2-100 Eyedrop Aseptic Filling Production Line

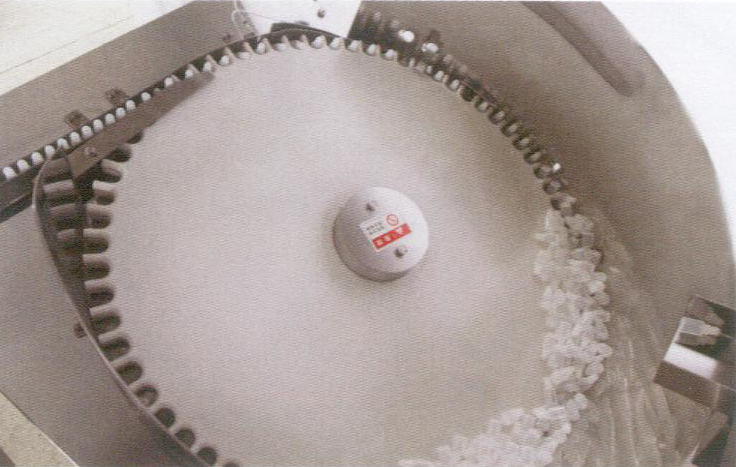

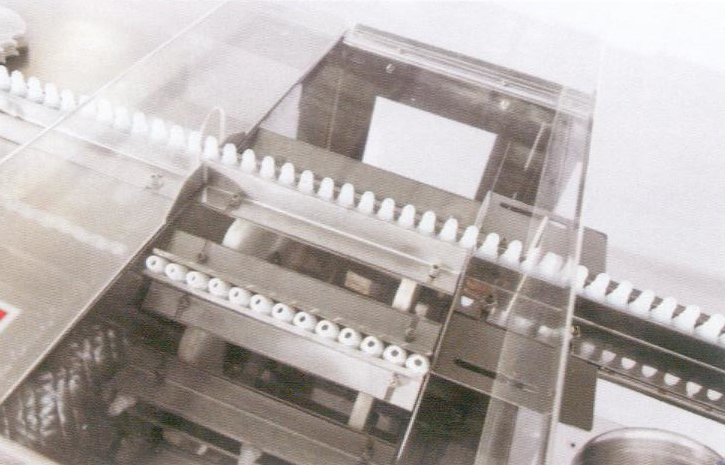

The prooduction line of the eye drops is mainly to the completion of the eye drops bottle Unscrambler,bottle conveying, air wash, metering packaging, plus stuffed inside and outside screw etc processed.
Main technical parameter
|
Bottle used |
5-30ml plastic bottle |
|
Production capacity |
90-120bpm |
|
Filling nozzles |
4 |
|
Bottle air washing heads |
12 |
|
Plug placing heads |
2 |
|
Capping heads |
2 |
|
Filling precision |
≤±1% |
|
Qualified bottle air washing |
100% |
|
Qualified plug placing |
≥99.8% |
|
Qualified cap screwing |
≥99.8% |
|
Compressed air required |
10m3/h 0.6-0.8MPa |
|
Total power |
≤5KW 380V(220V) 50HZ |
|
Net weight |
3000KG |
|
Overall dimension |
6780*2380*2000(Exclude LAF) |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
MDLP-系列高速理瓶機專業(yè)用于不同尺寸的塑料瓶理瓶，根據(jù)不同尺寸的塑料瓶子，可以通過更換模具實現(xiàn)。理瓶速度最快可以達(dá)到200瓶每分鐘
Learn More
This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.
Learn More

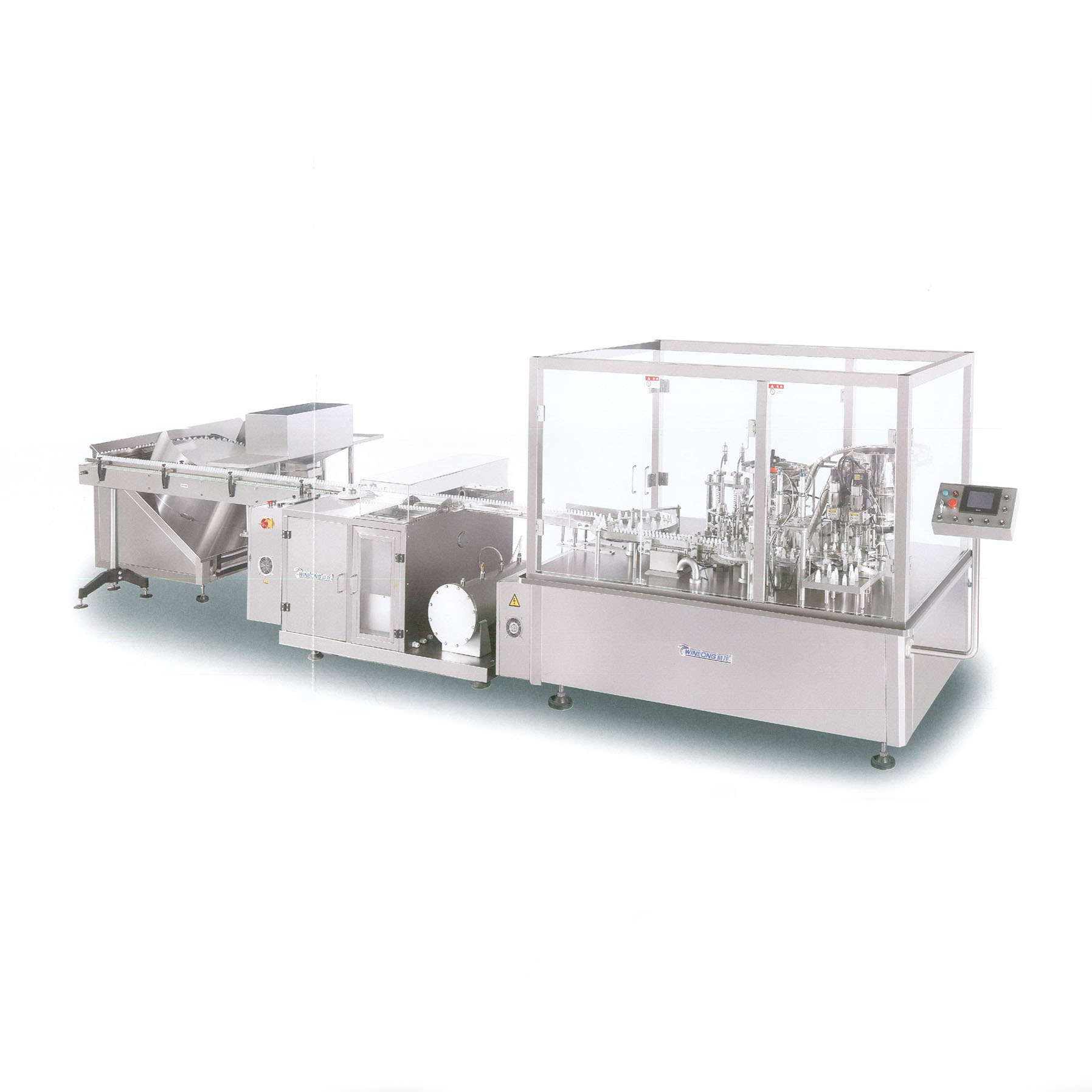

The eysdrop aseptic filling line consist of four main units including unscrambler, conveyor, pure air washer, monobloc of filling plugging and capping unit. Themachine is mainly used to accomplish bottle unscrambling, conveying, air washing, dosage discharging, plug & capplacing, The entire production process is protected under laminar flow H14 and aseptic isolation cover, which isolated all working area and keep eyedrops product be filled under aseptic environment. The regional isolation protection to ensure that the eye drops sterile production. The whole machine meet the requirements of new GMP. The production line is also suitable for the production of other similar plastic bottle.
Learn More
This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor,healthcare product, tincture in different viscosity packing. Auto accomplish bottle unscrambling, washing, volumetric Filling, cap screwing (sealing), lnduction Sealer, labeling process. The whole machine meets the requirements of GMP.
